Achieve Perfect Grinds Every Time with the Bevel Grinding Jig

Struggling with consistent plunge lines and precise bevels? The Bevel Grinding Jig is designed to give knifemakers like you the control you need. Say goodbye to uneven grinds and frustrating mistakes. This tool ensures flawless, repeatable results, helping you master every blade with ease. Designed and built for knifemakers by ABS Mastersmith Neels van den Berg from Black Dragon Forge, it’s perfect for improving accuracy and saving time in your workshop.

Get yours today and experience the difference!

Made for both newcomers and seasoned knifemakers alike, this innovative tool guarantees immaculate bevels with or without the need for file guides or bolster alignment clamps.

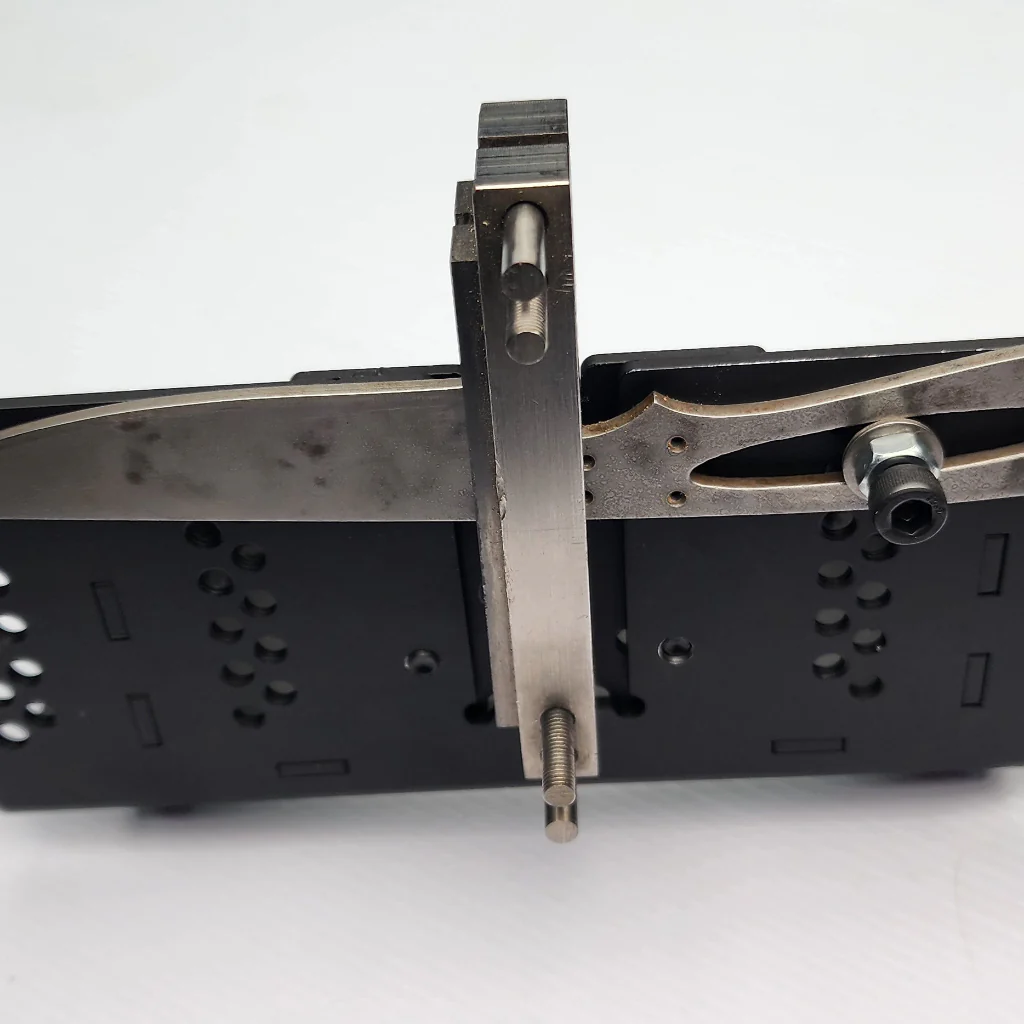

Please note, the blade and file guide depicted in the photos are for illustrative purposes only and are not included. You do not need a file guide to use the JIG.

Key Features:

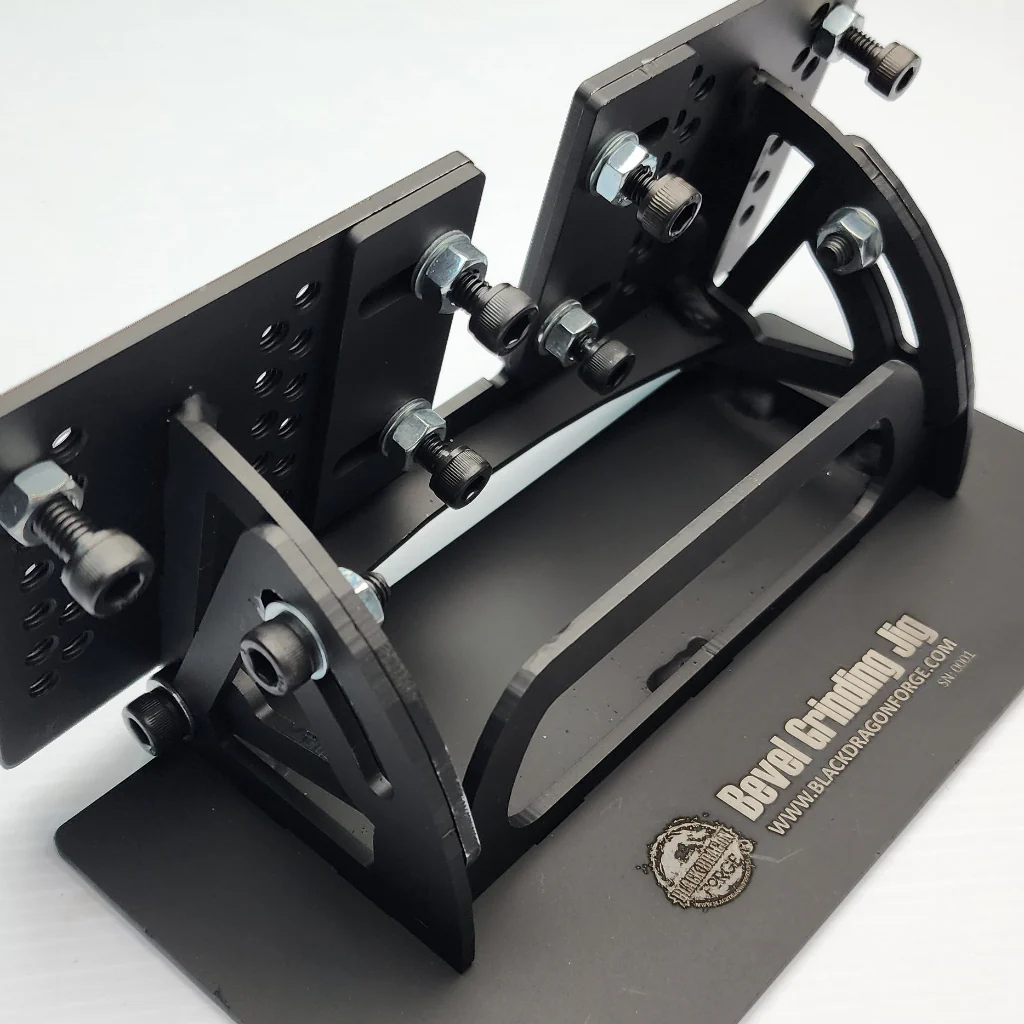

1. Versatile Design: The Black Dragon Bevel Grinding Jig adapts seamlessly to different grinding setups, accommodating both file guides and bolster alignment clamps or functioning independently for added versatility.

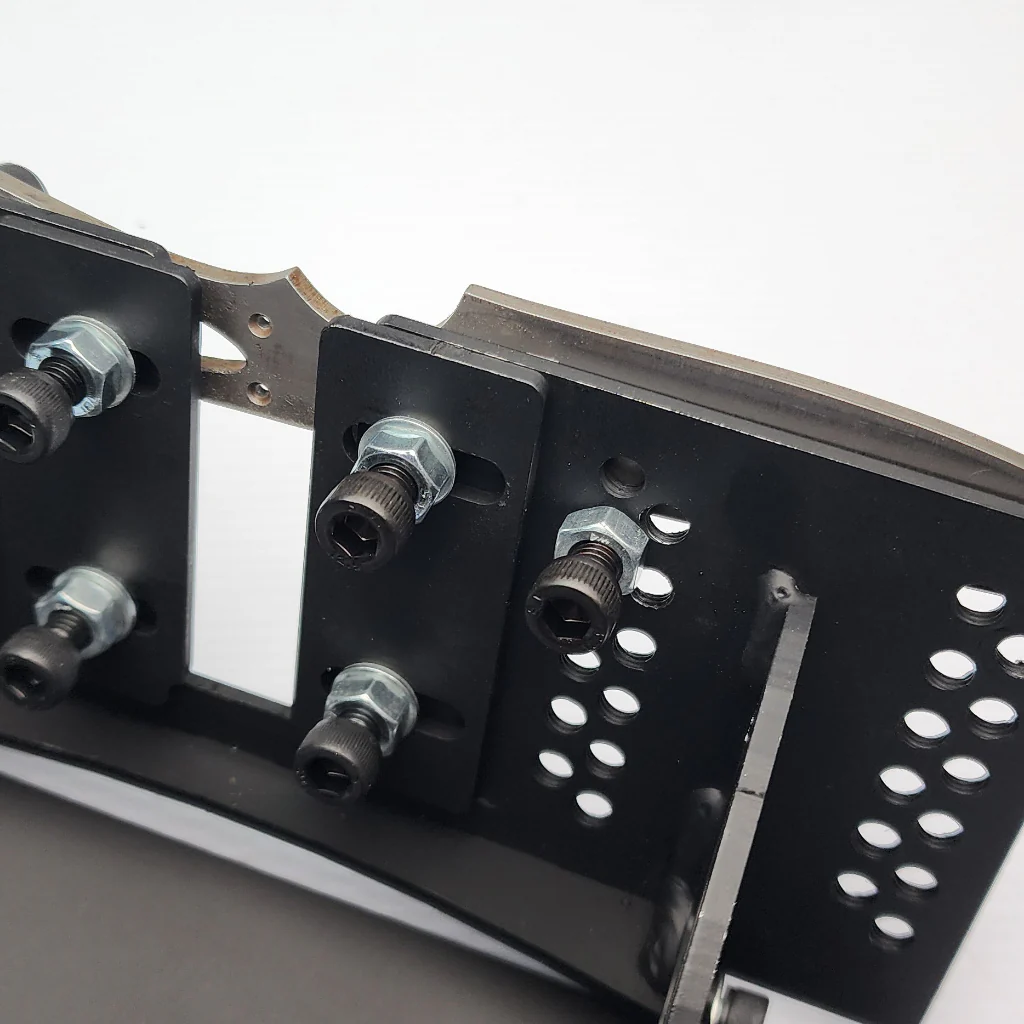

2. Robust Support: Equipped with two stopper/support bolts, the jig ensures the stability of your blade's spine during grinding, guaranteeing secure and accurate results.

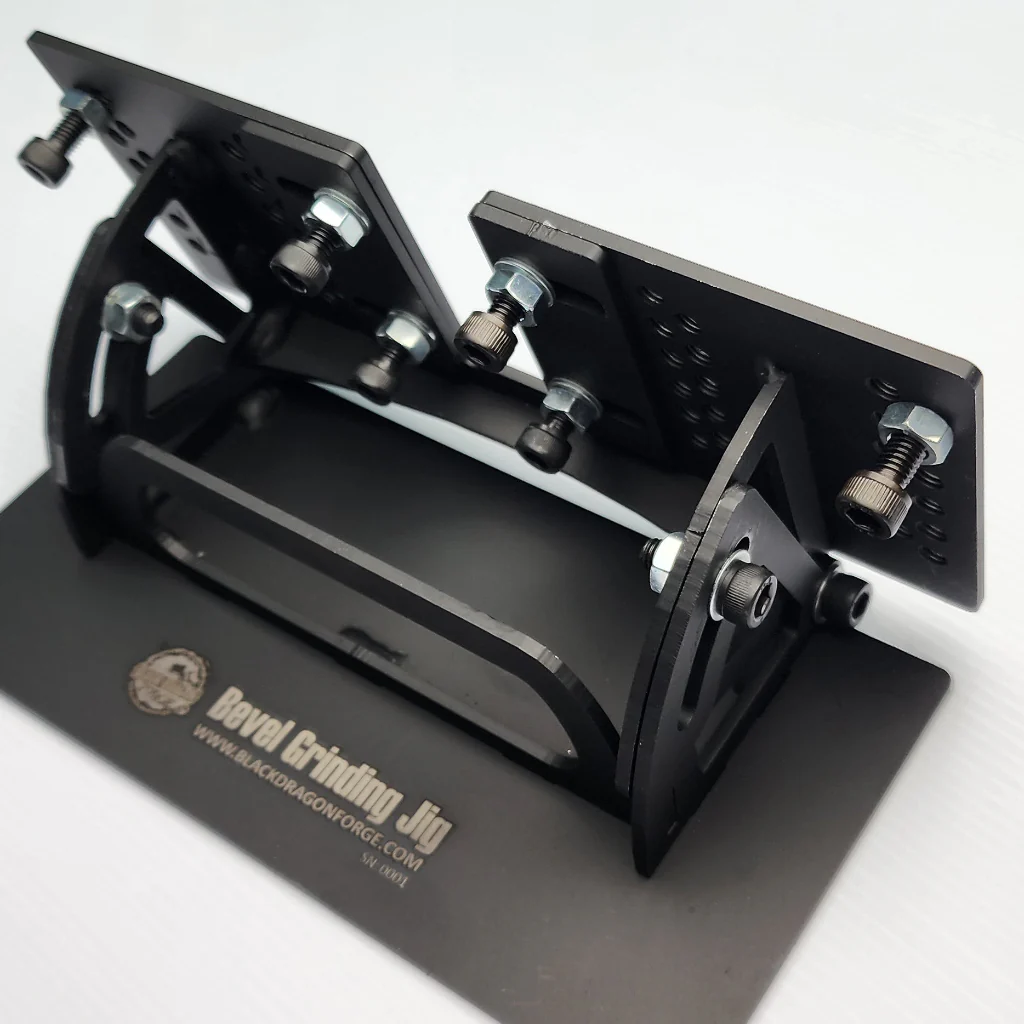

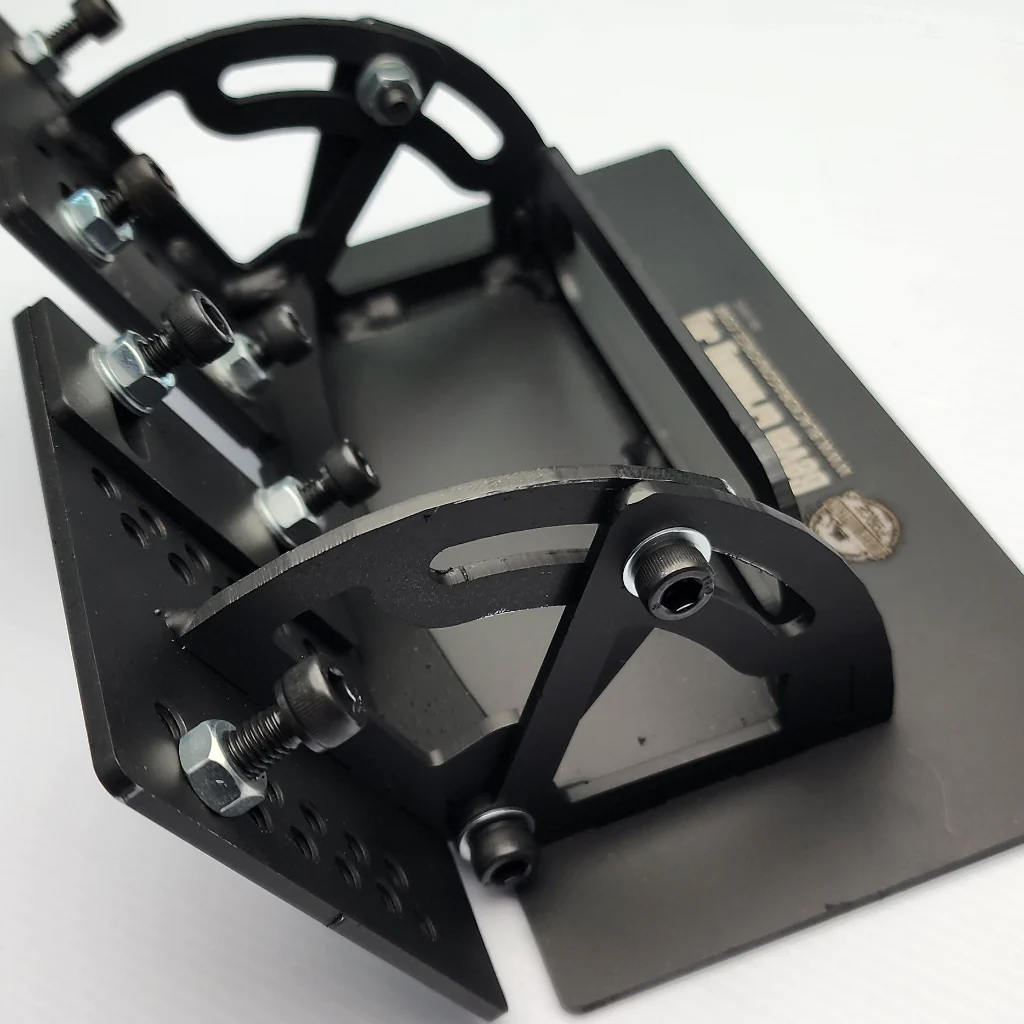

3. Adjustable Angle: Fine-tune your bevel angle effortlessly with the user-friendly M6 nuts and bolts, enabling precise adjustments to meet your exact specifications.

4. Wide Compatibility: With a generous 200mm width and a single slot designed to accommodate a file guide, the jig caters to various blade sizes and shapes, providing unmatched flexibility.

5. User-Friendly Setup: Simplify your grinding process with our suggested setup procedure, streamlining blade clamping and angle adjustment for a hassle-free experience.

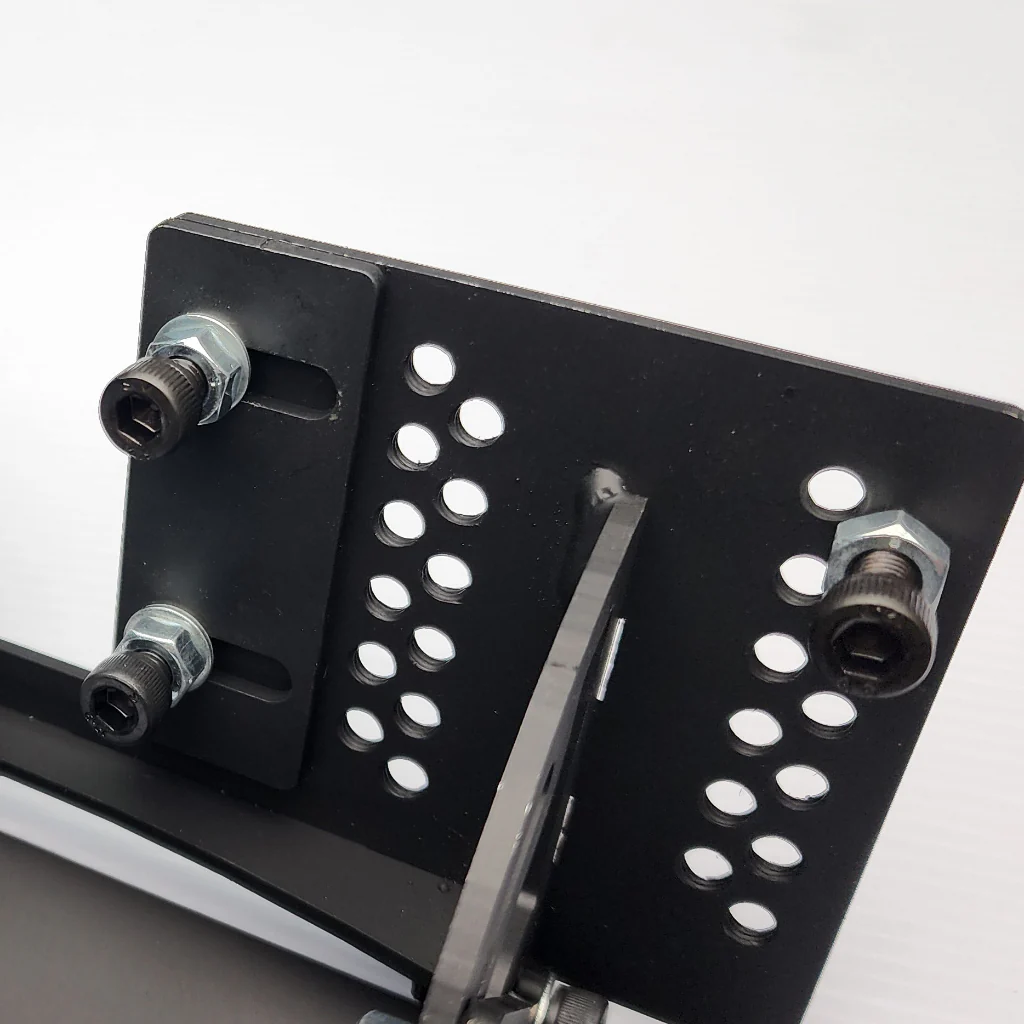

6. Precision Grinding: Exercise complete control over the grinding process with the 48 hole fastening grid, allowing for 2.5mm adjustment increments, ensuring uniform grind lines and impeccable edge thickness.

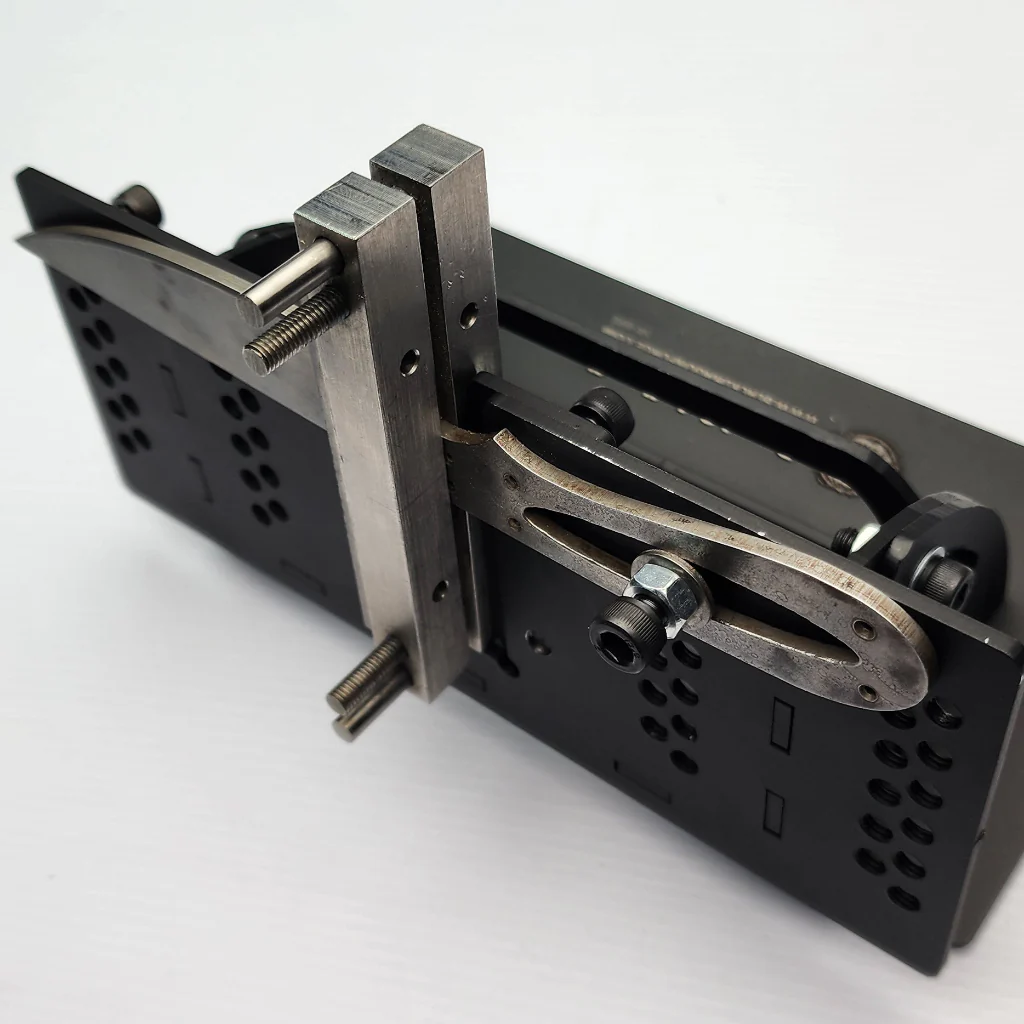

Suggested Setup Process (Using a File Guide):

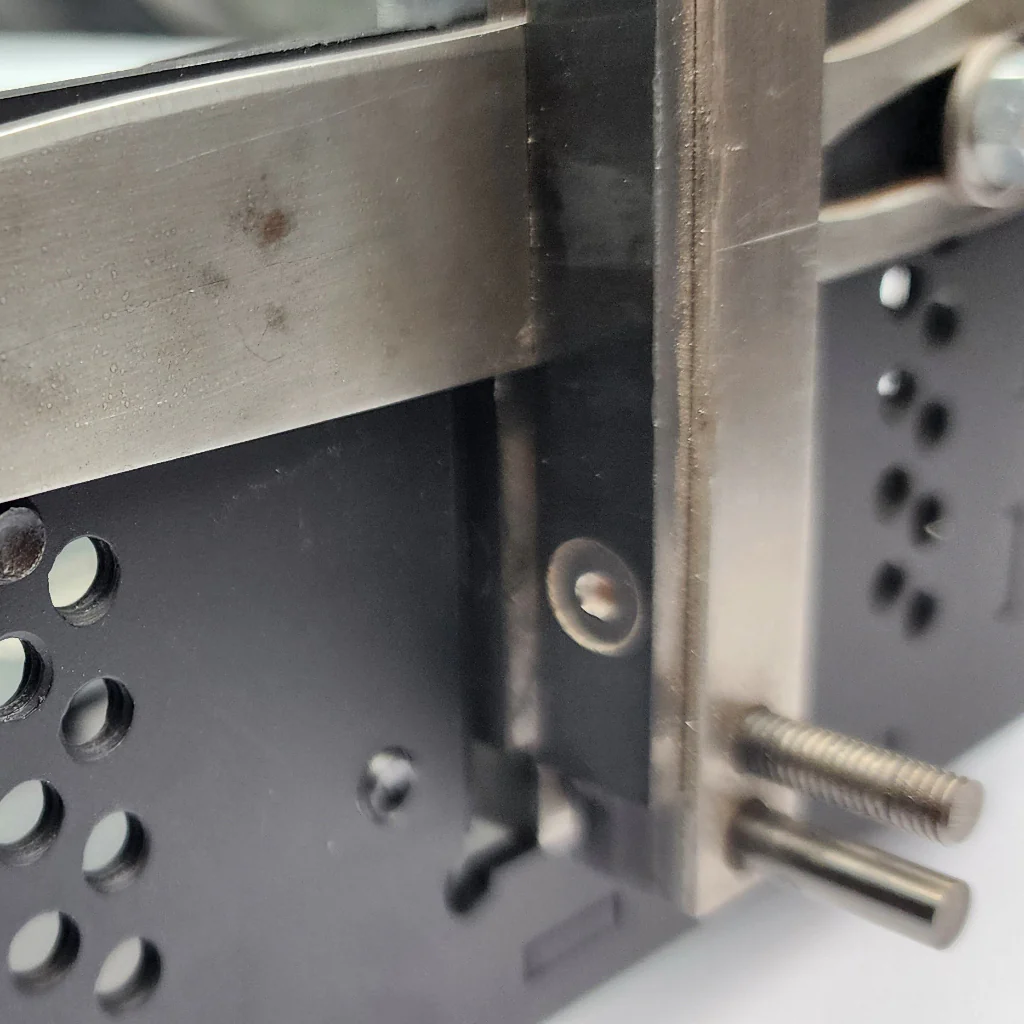

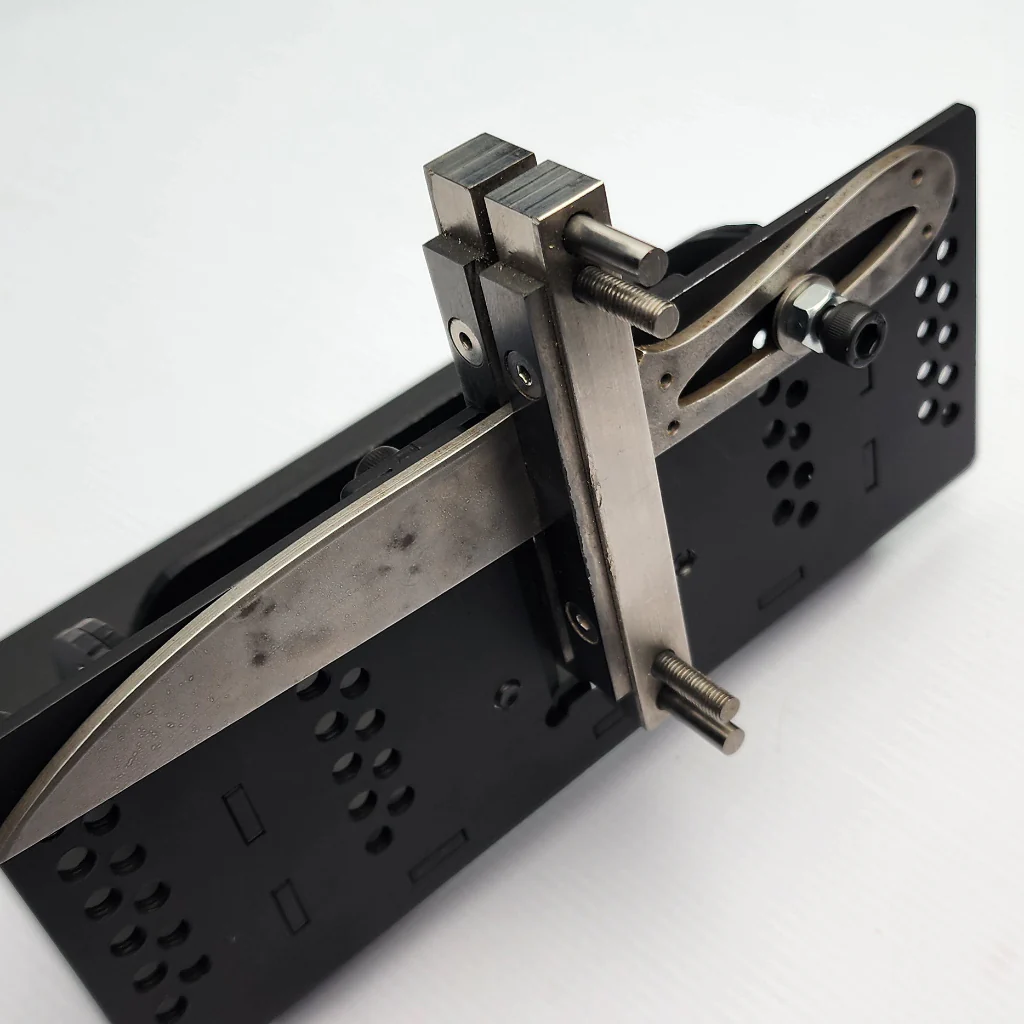

1. Clamp your blade securely in a file guide.

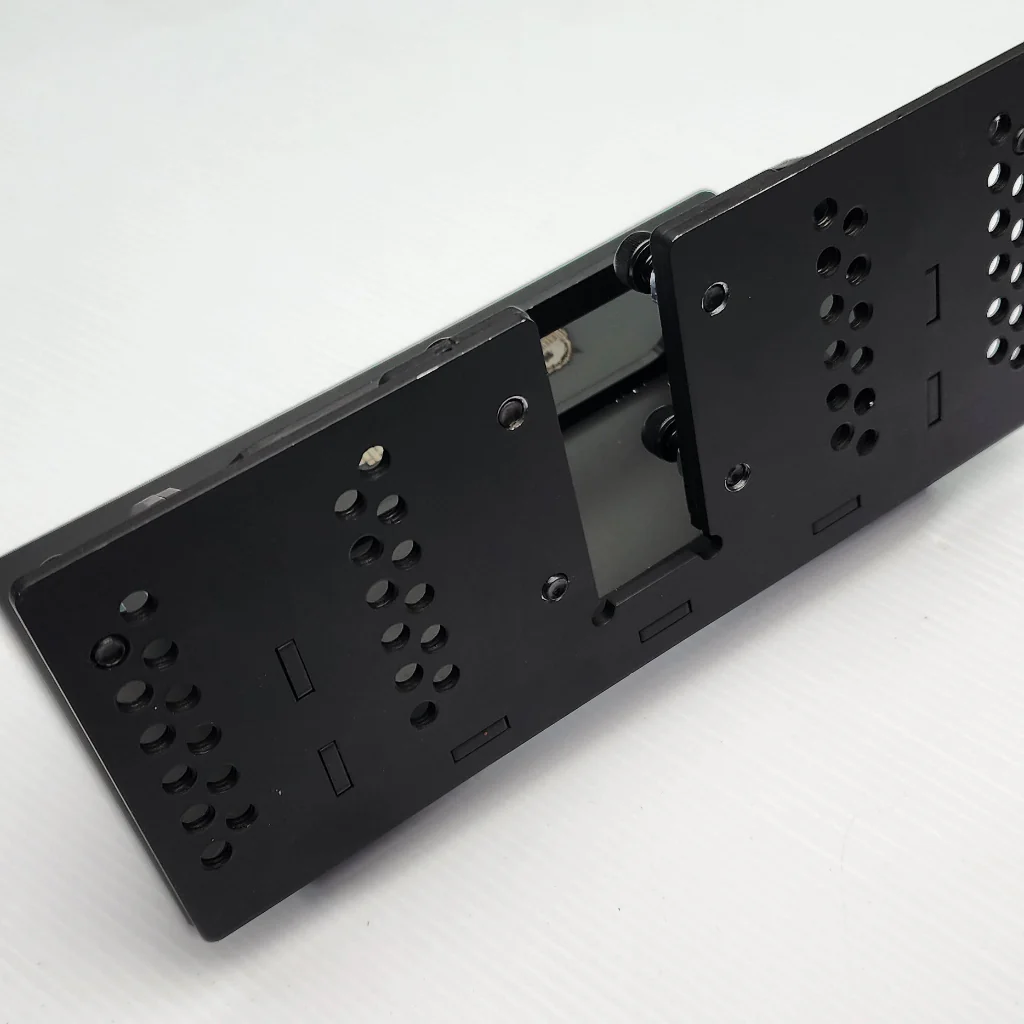

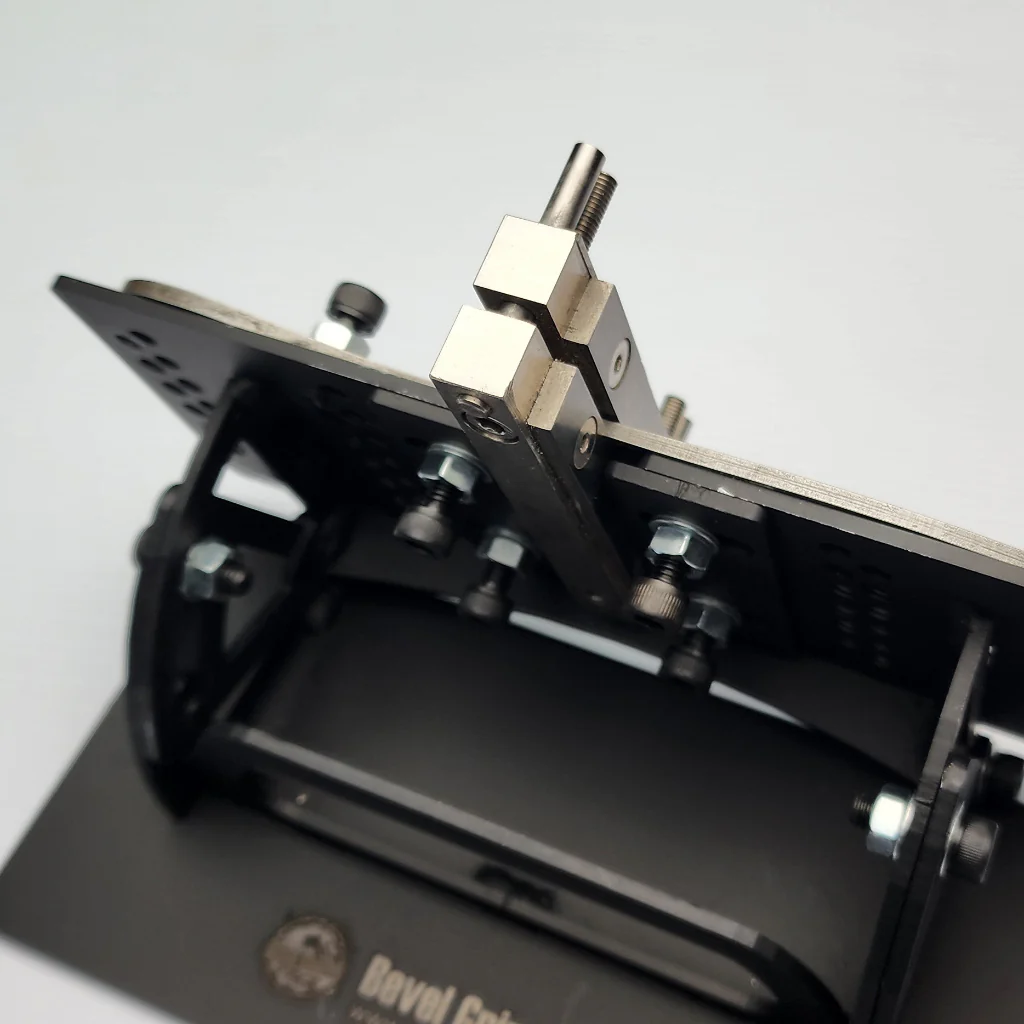

2. Insert the file guide into the slot in the Black Dragon Bevel Grinding Jig and adjust the gate plates to fit the width of your file guide.

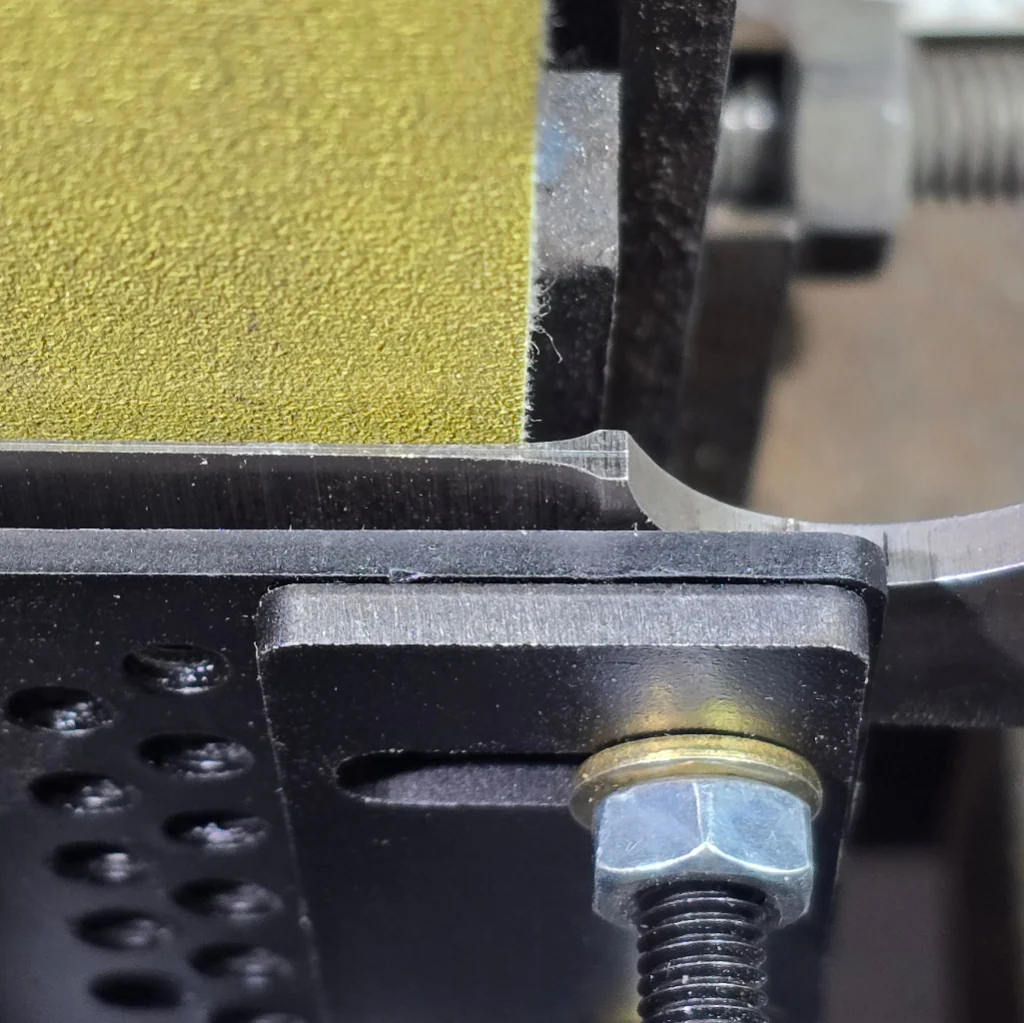

3. Ensure the cutting edge protrudes 3-5mm above the jig's surface, avoiding contact with the Bevel Grinding Jig.

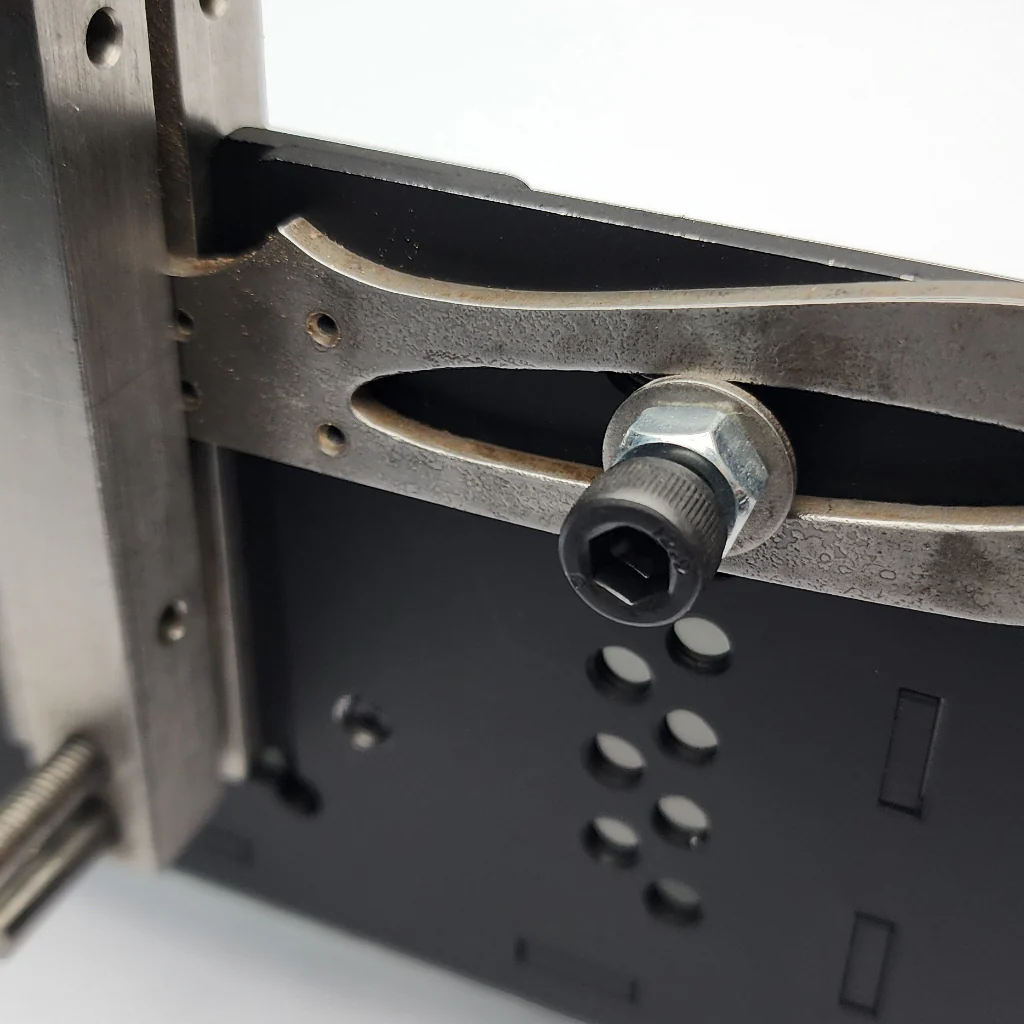

4. Bolt the blade to the Bevel Grinding Jig and support the spine with the included bolts.
5. Adjust the grinding angle by tilting the faceplate and lock it in place.

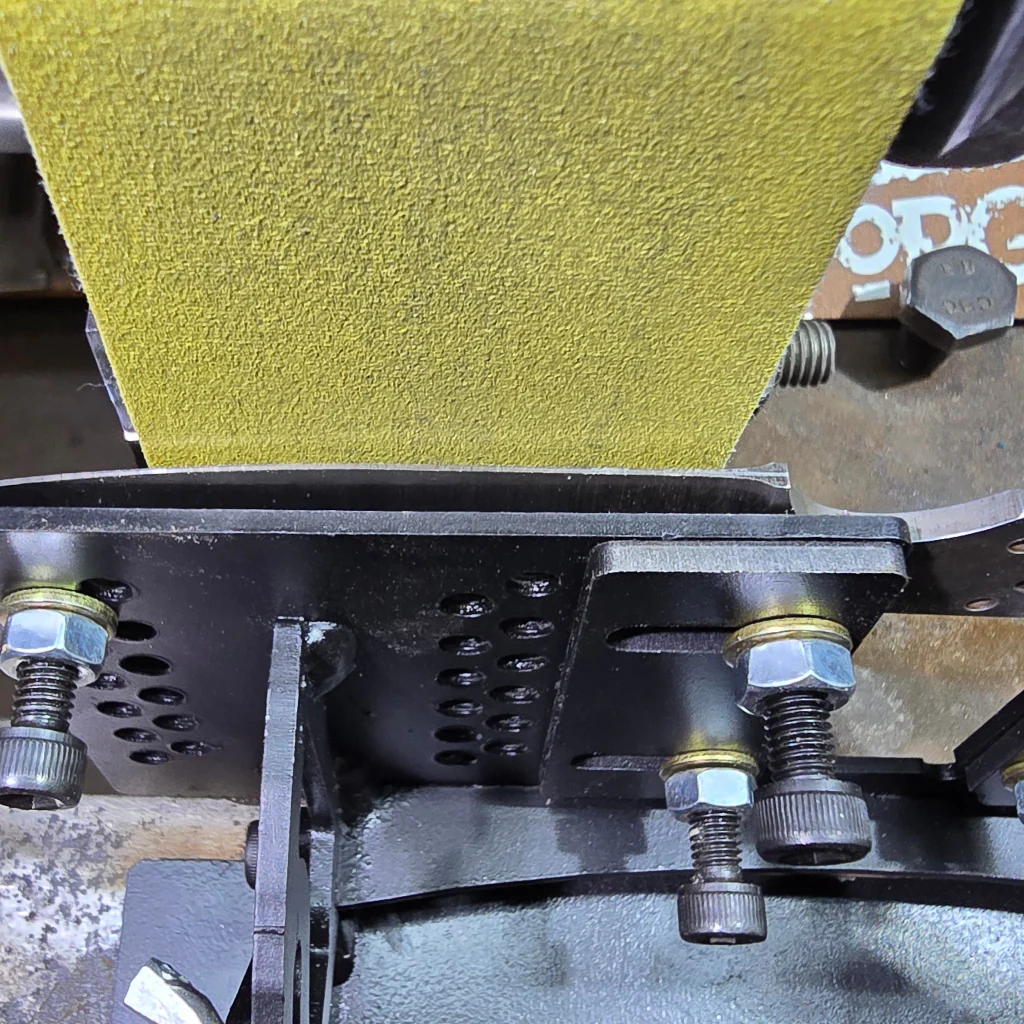

6. Begin grinding with a low angle to break the corner, gradually increasing the angle.
7. After grinding one side, flip the blade in the Bevel Grinding Jig without adjusting the file guide position.
8. Continue grinding, adjusting the angle as needed.

Suggested Setup Process (No File Guide):

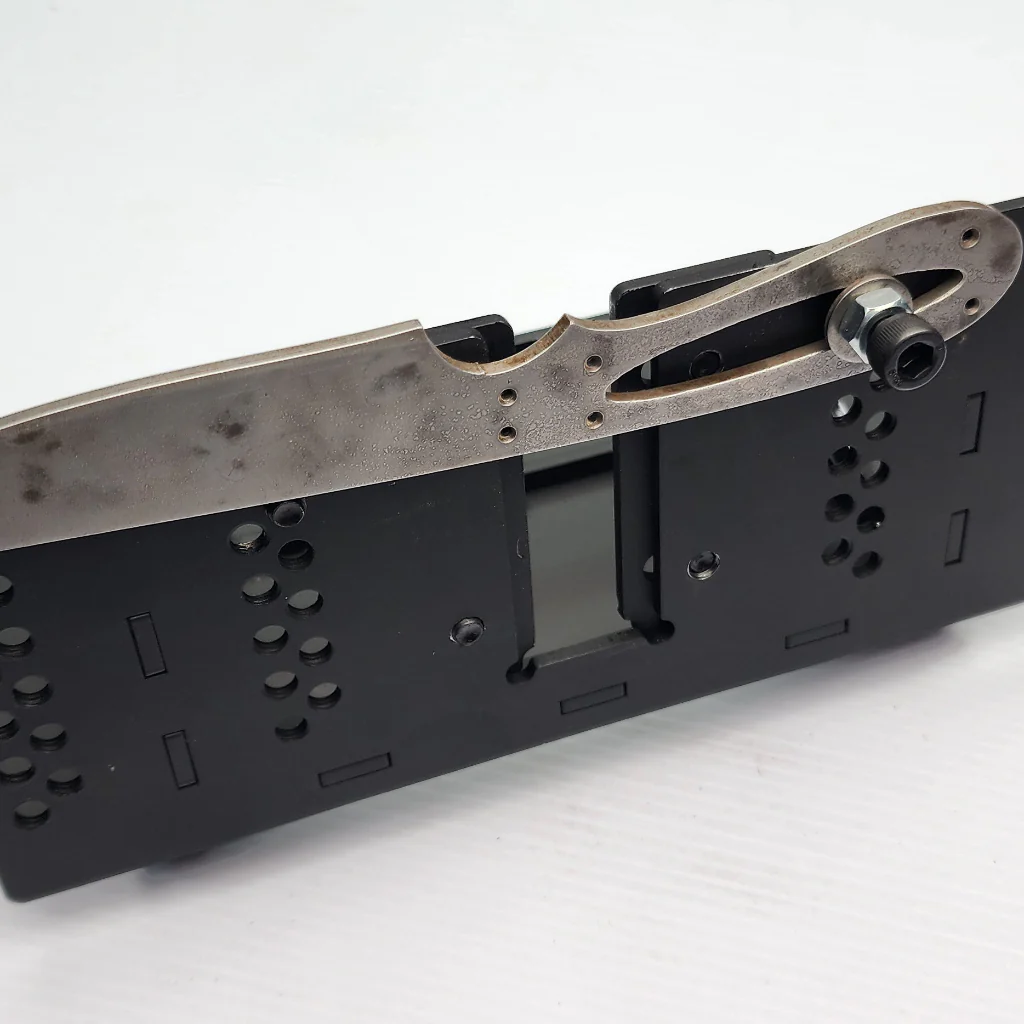

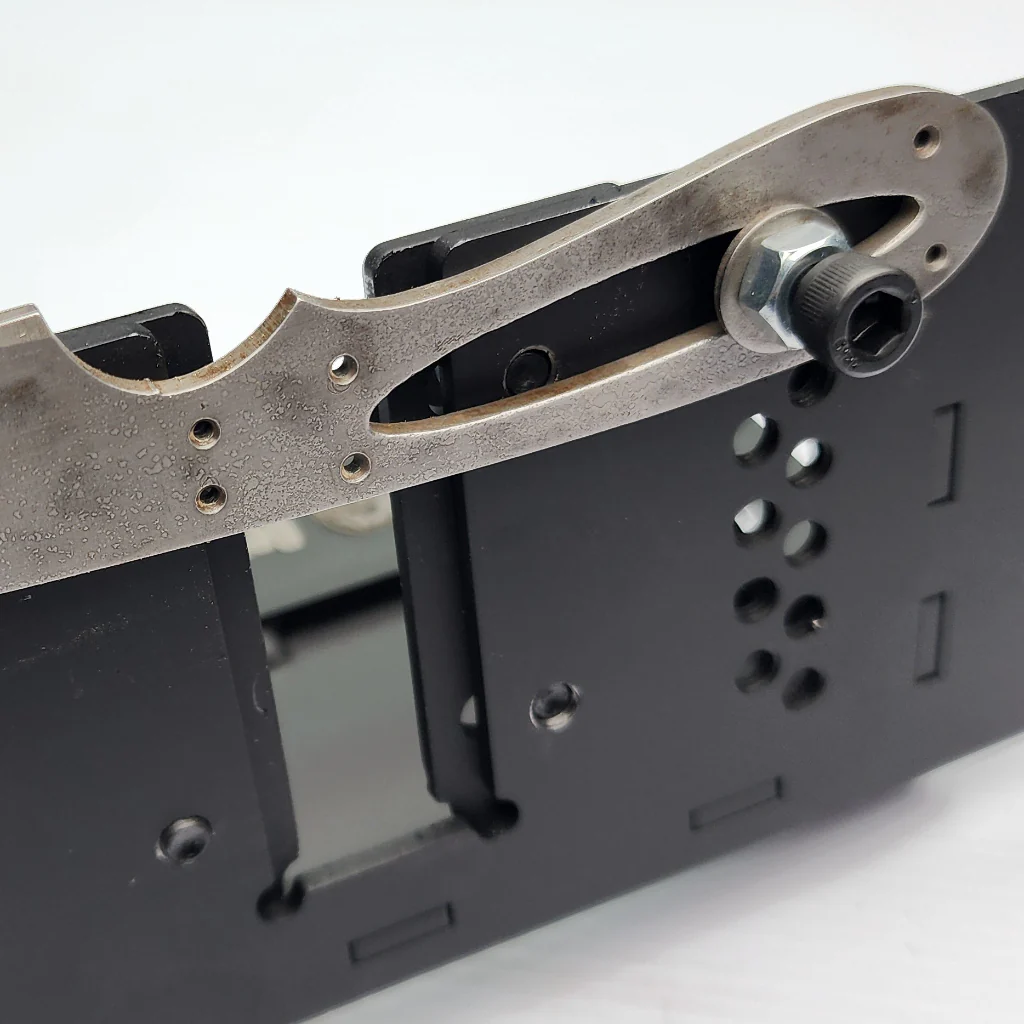

1. Bolt the blade to the Bevel Grinding Jig and support the spine with the included bolts.
2. Ensure the cutting edge protrudes 3-5mm above the jig's surface, avoiding contact with the Bevel Grinding Jig.
3. Adjust the grinding angle by tilting the faceplate and lock it in place.
4. Begin grinding with a low angle to break the corner, gradually increasing the angle.
5. After grinding one side, flip the blade in the Bevel Grinding Jig ensuring a mirrored bolt down pattern is used.
6. Continue grinding, adjusting the angle as needed.

Elevate your craft and experience the precision and efficiency of the Black Dragon Bevel Grinding Jig. Empower yourself with this indispensable tool for achieving professional-quality bevels effortlessly.

Please note, the blade and file guide depicted in the photos are for illustrative purposes only and are not included.
